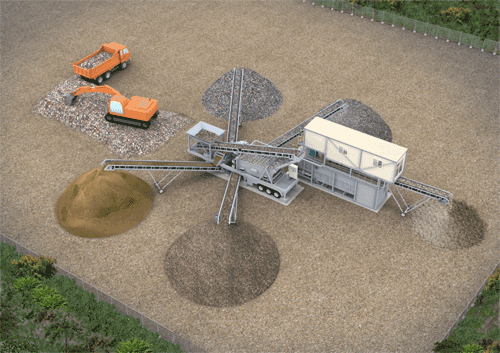

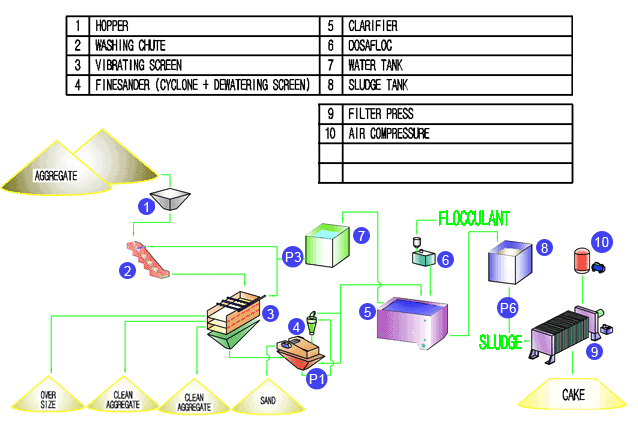

This facility consists of a washing line removing foreign matters and clay powder included in the aggregates through water washing; a sand line producing sands by processing the clay powder generated from the crushing line; and a water treatment line purifying slurry-included waste water generated from the sand line for reuse.
A patented sand feeder installed in the facility was developed using Clatec's expert technology and it has earned an excellent reputation among customers for its first-rate feeding performance.
Major Equipment
Production Capacity
150 TON/hr
200 TON/hr
250 TON/hr
HOPPER
6m3
7m3
8m3
Washing Chute
CWC-1000
CWC-1100
CWC-1300
Vibrating Screen
CVS-2150-H3
CVS-2150-H3
CVS-2150-H3
Fine Sander
FS-100
FS-160
FS-200
Clarifier
40m3
45m3
50m3
Sludge Tank
20m3
25m3
30m3
Water Tank
20m3
25m3
30m3
Dosafloc
DC-500
DC-1000
DC-1000
Crapactor
CP-2200
CP-3800
CP-4400
Filter Press
CFP-1200
CFP-1200
CFP-1200
Total Required Power
160kW
210kW
270kW
These specifications are subject to change without notice.
Products not listed in the table can also be manufactured to customer’s order.
