| - Sea Sand Washing Plant |
|
 |
|

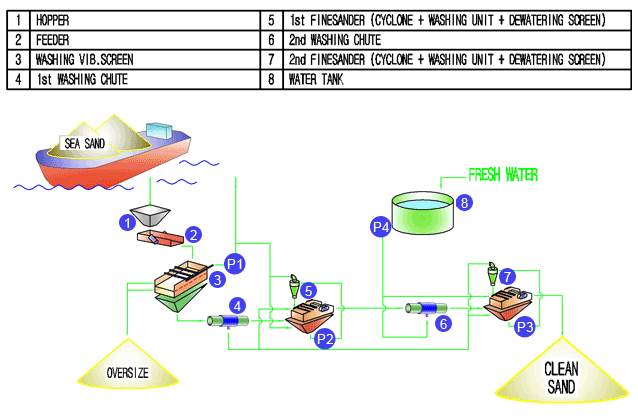

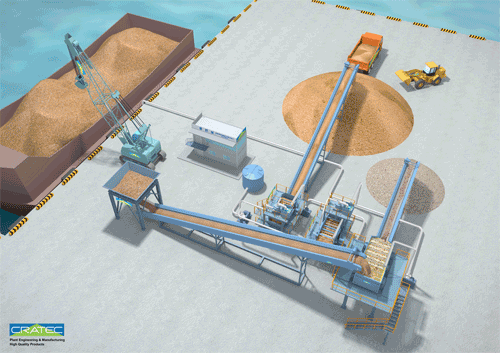

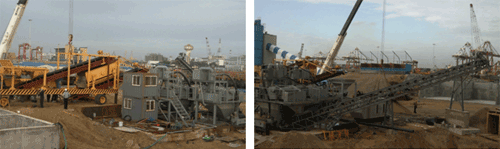

This facility consists of a washing line removing salt and clay powder included in the sea sands by washing
them with water, and a separation line separating sands by their sizes.
A patented sand feeder installed in the
facility was developed using Clatec's expert technology and it has earned an excellent reputation among
customers for its first-rate
feeding performance.
|
|
| |
 |
 |
| |
| Major Equipment |
Production Capacity |
| 150 TON/hr |
200 TON/hr |
250 TON/hr |
| HOPPER |
10m3 |
15m3 |
20m3 |
| VIBRATING FEEDER |
CVF-1012 |
CVF-1216 |
CVF-1522 |
| VIBRATING SCREEN |
CVS-2160-2D |
CVS-2470-2D |
CVS-2160-2D |
| 1st WASHING CHUTE |
CWC-800 |
CWC-1200 |
CWC-1600 |
| 1st FINE SANDER |
FS-100 |
FS-200 |
FS-300 |
| 2nd WASHING CHUTE |
CWC-800 |
CWC-1200 |
CWC-1600 |
| 2nd FINE SANDER |
FS-100 |
FS-200 |
FS-300 |
| WATER TANK |
80ß |
R120ß |
160ß |
| Total required power |
160kW |
200kW |
250kW |
|
- These specifications are subject to change without notice.
- Products not listed in the table can also be manufactured to customer’s order.
|
| |
| |
| |
