 PLANT |
| - Crushing Plant |
|
 |
|

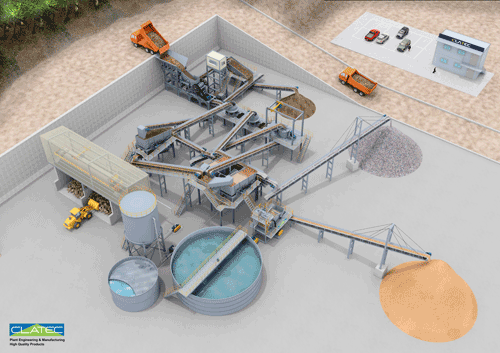

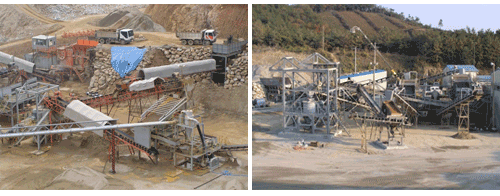

This facility consists of a crushing line producing regular aggregates from mountain rocks; a sand line
producing sands for ready-mixed concrete by processing stone powder generated from the crushing line; and
a water treatment line purifying slurry-included waste water generated from the sand line for reuse.
A patented sand feeder installed in the facility was developed using Clatec's expert technology and it has
earned an excellent reputation among customers for its first-rate feeding performance.
|
|
| |
 |
| Major Equipment |
Production Capacity |
| 160 TON/hr |
300 TON/hr |
400 TON/hr |
| HOPPER |
15m3 |
20m3 |
30m3 |
| Grizzly Feeder |
CG-0936 |
CG-1042 |
CG-1248 |
| Jaw Crusher |
HJ-3624 |
HJ-4230 |
HJ-4840 |
| 1st Cone Crusher |
HC-1200 |
HC-1300 |
HC-1680 |
| Vibrating Screen |
CVS-1842-3H |
CVS-2470-3H |
CVS-2470-3H |
| 2nd Cone Crusher |
CC-1200 |
CC-1300 |
CC-1680 |
| Belt Feeder |
CBF-750 |
CBF-900 |
CBF-1050 |
| Vibrating Screen |
CVS-2470-P |
CVS-2470-P |
CVS-2470-P |
| Crapactor |
CP-2200 |
CP-3800 |
CP-4400 |
| Fine Sander |
FS-130 |
FS-250 |
FS-300 |
| Thickener |
CDR-10 |
CDR-13 |
CDR-15 |
| Sludge Silo |
CSS-4 |
CSS-5 |
CSS-5 |
| Filter Press |
CFP-1200 |
CFP-1500 |
HCFP-2000 |
| Dosafloc |
MC-1000 |
MC-2000 |
MC-2000 |
| Total Required Power |
850kW |
1,400kW |
1,800kW |
|
| |
| |
| |
|
|
 |
