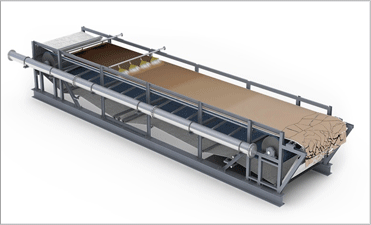

| CLATAF® CVF(Vacuum Belt Filter) Horizontal |
| |
| CLATAF ® CVF(Vacuum Belt Filter) is to filter and dewater sludge generated during desulfurizing and chemical processes and can be applied to various facilities and processes including power plants. Slurry coming from settlement and distribution facilities is spread over the filter top. And then it is vacuum-dewatered for final disposal. Compared to gypsum, the disposed slurry has 15~20wt% of water content and its thickness can be reduced to 30~70mm.
For unmanned operation, sensors and transmitters are installed in major parts. And real-time checking from the operation room is possible. Also, the alignment unit and the washing unit are added to prevent belts and filter cloths from being mislocated. |
 |
CLATAF® CVF(Vacuum Belt Filter) PART
Main Frame
Head Drum
Tail Drum
Rubber Belt
Filter Cloth
Belt & Cloth Washing Unit
Belt & Cloth Alignment Unit
Vacuum Pump
|
|
| |
 |
| |
| |
| |
|
