| - Portable Washing Plant |
|
 |
|

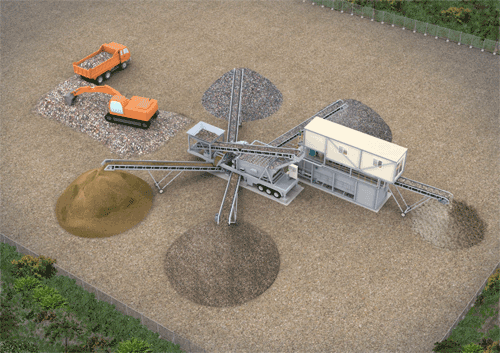

This facility consists of a washing line removing foreign matters and clay powder included in the aggregates
through water washing; a sand line producing sands by processing the clay powder generated from the
crushing line; and a water treatment line purifying slurry-included waste water generated from the sand line for
reuse.
A patented sand feeder installed in the facility was developed using Clatec's expert technology and it
has earned an excellent reputation among customers for its first-rate feeding performance.
|
|
| |
 |

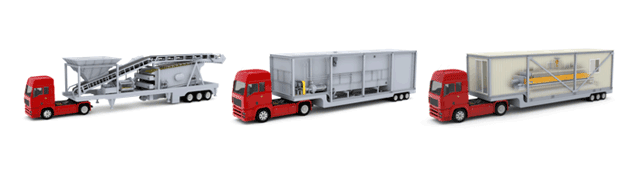

| WASHING & SEPARATION
|
CLARIFICATION
|
FILTERATION
|
|
| |
| Major Equipment |
Production Capacity |
| 150 TON/hr |
200 TON/hr |
250 TON/hr |
| HOPPER |
6m3 |
7m3 |
8m3 |
| Washing Chute |
CWC-1000 |
CWC-1100 |
CWC-1300 |
| Vibrating Screen |
CVS-2150-H3 |
CVS-2150-H3 |
CVS-2150-H3 |
| Fine Sander |
FS-100 |
FS-160 |
FS-200 |
| Clarifier |
40m3 |
45m3 |
50m3 |
| Sludge Tank |
20m3 |
25m3 |
30m3 |
| Water Tank |
20m3 |
25m3 |
30m3
|
| Dosafloc |
DC-500 |
DC-1000 |
DC-1000 |
| Crapactor |
CP-2200 |
CP-3800 |
CP-4400 |
| Filter Press |
CFP-1200 |
CFP-1200 |
CFP-1200 |
| Total Required Power |
160kW |
210kW |
270kW
|
|
- These specifications are subject to change without notice.
- Products not listed in the table can also be manufactured to customer’s order.
|
| |
| |
| |
