| - Classifier Screen |
 |
|

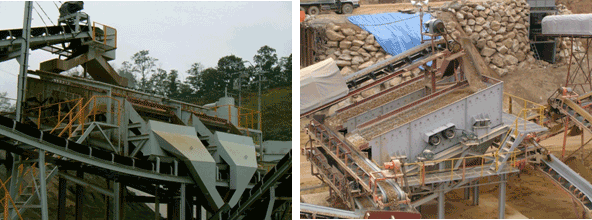

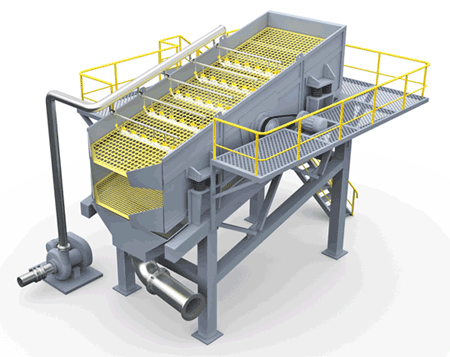

This machine is to select and clean materials by size. The number and size of screens are decided by the
user. This machine with one to five stages can be manufactured. Its width and length is decided by capacity.
Material for screen is determined by the property and composition of raw materials. Steel and urethane are
commonly used for screens. According to usage, other materials are selected for screens.
Materials highly
resistant to repetitive vibration are used for the frame. As most of the parts are laser-cut and tightened with
bolts for easy repair and replacement. Thanks to its mechanical vibration, its life is doubled than
motor-vibration machines. |
|
|
|
| |
 |
|
| |
|
- Clearance between decks are wide enough for easy screen replacement.
- Upper-level vibration bearings are used for longer life.
- Laser processing and bolt structures are employed for enhanced endurance.
- According to the type and composition of stone, nets can be configured and installed easily.
- Up to five decks can be screened.
|
| |
| MODEL |
NO.OF DECKS |
SCREEN PULLEY RPM |
KW OF 1200 RPM ELECTRIC MOTOR |
DRY SCREEN GROSS WEIGH (KG) |
DRY SCREEN GROSS WEIGH (KG) |
CU.CONT (M^3) |
| 1542 |
DOUBLE |
675~875 |
18 |
5216 |
5330 |
18 |
| TRIPLE |
18 |
6350 |
6484 |
20 |
| 1548 |
DOUBLE |
675~875 |
18 |
5670 |
5783 |
18 |
| TRIPLE |
22 |
6940 |
7053 |
23 |
| 1848 |
DOUBLE |
675~875 |
22 |
6949 |
6985 |
21 |
| TRIPLE |
22 |
8664 |
8838 |
27 |
| 1850 |
DOUBLE |
675~875 |
30 |
8664 |
8838 |
30 |
| TRIPLE |
30 |
10297 |
10503 |
38 |
| 2160 |
DOUBLE |
675~875 |
30 |
9752 |
9947 |
33 |
| TRIPLE |
30 |
10206 |
11789 |
42 |
| 2470 |
DOUBLE |
675~875 |
60 |
12521 |
12748
|
46
|
| TRIPLE |
60 |
14200
|
14426
|
56
|
|
|
| |
|
