 Classification |
| - Log Washer |
 |
|

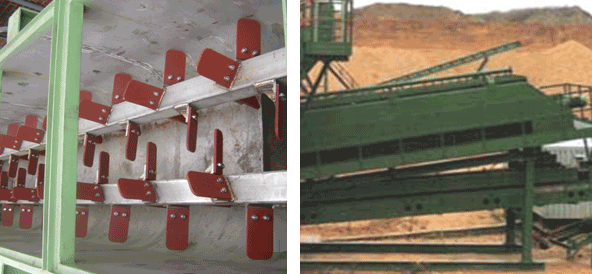

This machine is to remove stone dust or contaminants from the surface of raw materials. As raw materials go
through spiral blades, friction is created to remove stone dust or contaminants.
The cleaning nozzle installed at the inlet cleans raw materials and water comes out from the outlet with raw
materials.
According to contaminants, the machine uses different materials and highly-resilient chrome steel is
used for blades.
Mostly, it is used to improve the quality of raw materials in producing artificial aggregates.
However, it is also used to remove contaminants for recovering soil.
|
|
| |
 |
|
- Highly endurable due to a structure with strong materials.
- Suitable for cleaning aggregates with soil, raw materials with hardened contaminants and concrete.
- Suitable for cleaning aggregates collected from the sea.
- Suitable for removing contaminants from aggregates collected from the river and lake.
|
|
| |

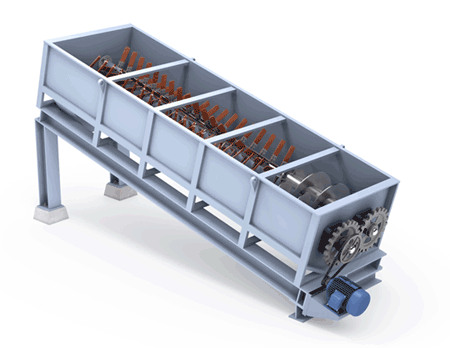

LOG WASHER
| SIZE |
DEAD LOAD(KG) |
LIVE LOAD(KG) |
MOTER(KW) |
SHAFP SPEED(RPM) |
CAPACITY RANGE(TPH) |
FEED SIZE MAX (TYPE *9.5mm) |
WATER REQUIREMENTS |
| 2418 |
5670 |
9299 |
29 |
45 |
25~60 |
86 |
95~946 |
| 3630 |
15422 |
34019 |
74 |
33 |
85~125 |
111 |
189~1839 |
| 4830 |
21546 |
40823 |
110 |
28 |
125~225 |
137 |
379~3028 |
| 4835 |
24040 |
43318 |
147 |
28 |
125~225 |
137 |
379~3028 |
|
| |
|
